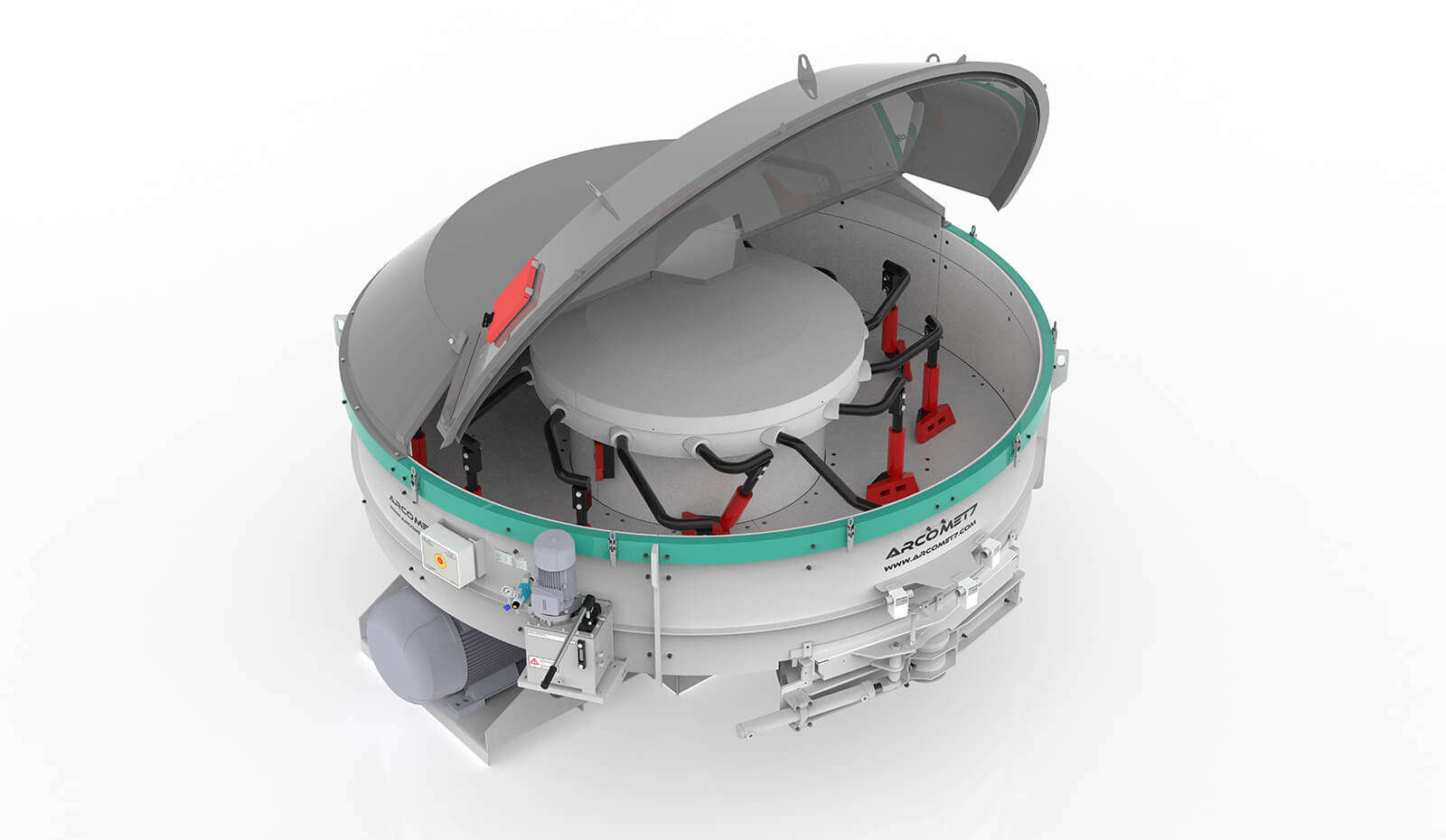

Pan turbo Mixer | MV
For high quality concrete and general applications.
Due to its robustness and versatility, this vertical shaft mixer allows for wide application in the public works sector, concrete/concrete, precast, refractory and environmental processes (glass and inerting).
It consists of a vertical-shaft rotor and a system of springs that make the arms adapt to an obstacle in the material to avoid possible breakage. The position of the arms is prepared to cover the entire mixing area.
The mixing of materials is produced by turning the arms at high speed, moving the mixture from the centre to the rear walls. The arms have a special curve that allows a good mixing avoiding the possibility of breakage.
Short mixing time and high efficiency in complex mixtures. Homogeneity in all geometry avoiding dead spots or low movement areas in the tank.
Benefits of the vertical shaft mixer
- External and internal side scrapers that keep the material in the mixing area.
- Inner linings in alloy steel with 400HB for a longer duration.
- Superior Ni-Hard cast iron blades for minimal wear.
- Hydraulic discharge gates.
- All spare parts guaranteed.
- Very low maintenance
Application sectors
Glass | Concrete | Prefabricated | Inertized | Environment | Mortars
- Spring system to absorb potential impacts and extend the lifespan of the mixing system.
- Inner linings made of 400HB hardness steel alloy for greater durability.
- External and internal side scrapers that keep the material in the mixing area.
- Blades with Ni-Hard casting.
- Optionally, mixing paddles made of polyurethane or tungsten carbide can be installed.
- Hydraulic discharge gates, possibility of 2 or 3 depending on the model.
- Opening of the top cover to facilitate maintenance and cleaning.
- Power unit consisting of a high-pressure motor and reducer.
- Arco Gold Two control software.
- Electrical cabinet.
- Automatic washing system.
- Compuertas adicionales.
